From architectural steel to automotive components, demand for complex metal designs has grown fast. To meet it, manufacturers turn to bevel laser cutting — combining accuracy, speed and versatility to handle intricate assemblies, weld preparations and 3D fabrication.
Here is how bevel laser cutting enables complex work, and why businesses increasingly rely on specialized providers.
What makes bevel laser cutting so important

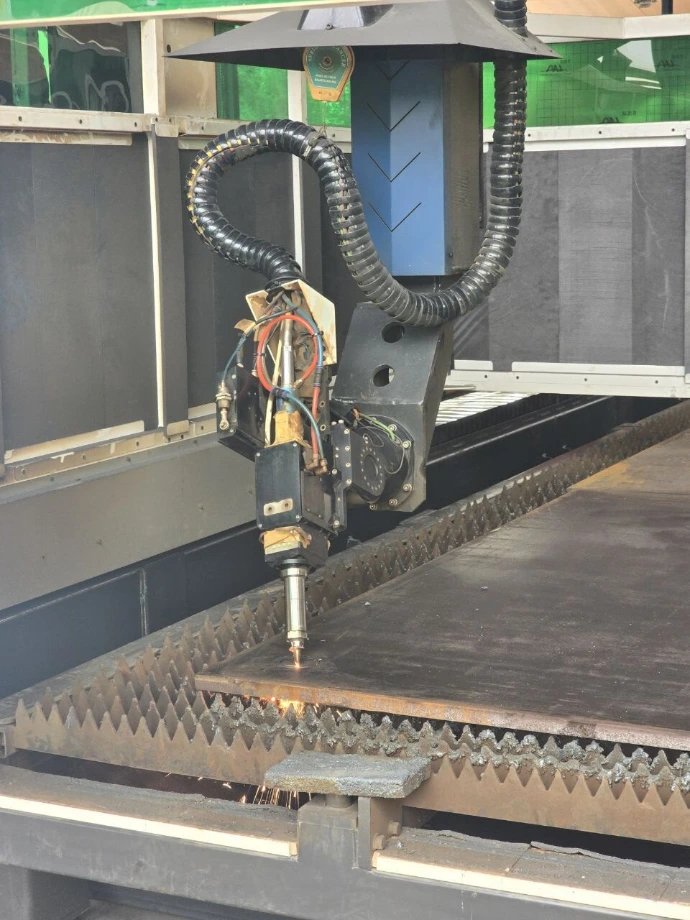

Bevel laser cutting goes beyond flat cutting: a multi-axis laser head (typically five-axis) tilts and rotates to create angled edges in a single operation. That is critical for parts needing complex joints, smooth weld seams or precise angular designs — the whole beveling process happens automatically, saving time and reducing human error.

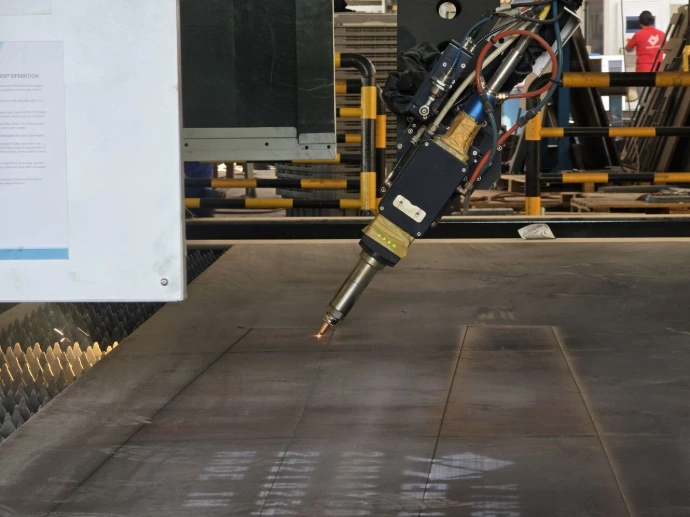

Key methods that enable complex designs
Multi-axis control. Advanced CNC precisely controls the head's position and tilt, up to ±45°, enabling non-perpendicular cuts and curved edges on sheets, pipes and structural tubes.
Single-pass processing. V, Y, X and K grooves are created in one pass, removing multiple setups and cumulative errors.
3D cutting. Modern machines adapt to irregular surfaces and complex geometries that traditional tools cannot achieve.
How the process works
It uses the same principle as conventional laser cutting — a focused beam melts or vaporizes material along a path — but the head tilts to cut at a precise angle:
● Engineers create a 3D CAD model with exact bevel angles; CAM software converts it into a tool path.
● The sheet or tube is clamped, and the system is set for material, thickness and bevel depth.
● The head adjusts angle and focal distance dynamically, keeping constant energy on the bevelled surface.
● A nitrogen or oxygen gas assist removes molten debris for clean, oxide-free edges.
● The edge is inspected — in most cases no post-processing is needed.
Applications Across Dubai’s Industries
Applications across Dubai's industries
Common uses include structural steel for construction, custom automotive parts, shipbuilding and offshore work, decorative architectural facades, and industrial machinery and piping. Manufacturers using metal fabrication in Dubai benefit from streamlined workflow and high-quality results at any scale.
Why manufacturers prefer it
Traditional methods like milling or plasma often need manual adjustment and multiple setups. Bevel laser cutting offers high accuracy for perfectly fitting welded joints, faster turnaround with fewer secondary processes, lower cost through reduced labour and waste, and flexibility across steel, aluminium and stainless steel.
Precision with bevel sheet laser cutting
For projects demanding sharp angles and clean finishes, bevel sheet laser cutting explained shows how tilting the head and controlling intensity dynamically gives smooth, weld-ready edges. Cutting V, Y or compound bevels in one operation keeps every part aligned during assembly — and it pairs naturally with a comparison of bevel cutting and edge grinding
Efficiency, accuracy and innovation with Morshedi
At Morshedi we provide advanced laser cutting for industrial, construction and manufacturing across the UAE — bevel, beam and tube laser cutting, backed by skilled technicians and modern equipment. Share your project details and our experts will provide a quote, delivery estimate and material guidance. Contact Morshedi for a consultation.
